Mars – Laser System


Installed with the high speed servo motor systems, the Mars laser cutters are working at an unbelievable speed with excellent quality. It’s especially good for customers who need to mass produce their products. There’re different sizes of Mars laser cutters for your choice.


Download Download Download


Standard Features

Technical Specifications

Laser System MARS 90(Plus) MARS 130(Plus) MARS 160(Plus)
Laser Tube Wattage 80-100Watt 100-130Watt 100-150Watt
Work Area 900x600mm(35.4″ x 23.6″) 1300x900mm(51.2″x35.4″) 1600x1000mm(63.0″x39.4″)
Max Part Size (WxLxH) Front door closed

1000x730x250mm(39.4″ x 28.7″ x9.8″)

1400x1030x250mm(55.1″ x 40.6″ x9.8″)

1700x1130x250mm(66.9″ x 44.5″ x9.8″)
Pass-through door

1000x∞x20mm(39.4″ x ∞” x0.8″)

1400x∞x20mm(55.1″ x ∞” x0.8″)

1700x∞x20mm(66.9″ x ∞” x0.8″)
Table Size 1000x730mm(39.4″ x 28.7″) 1400x1030mm(55.1″ x40.6″) 1700x1130mm(66.9″ x 44.5″)
Z Axis Height 230mm(9.1″) 230mm(9.1″) 230mm(9.1″)
Dimensions(WxDxH)

1500x1105x1040mm(59.1″ x 43.5″ x40.9″)

1900x1405x1040mm(74.8″ x 55.3″ x40.9″)

2200x1505x1040mm(86.6″ x 59.3″ x40.9″)
Net Weight 230kgs(507lbs) 310kgs(683lbs) 350kgs(772lbs)
Laser Type Sealed Co2 Glass Laser Tube
Cooling Water Cooled
Motion Control System High-Speed Hybrid servo motor
Maximum Speed 1000mm/S(39.4 IPS)
Speed and Power Control (engraving depth) Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
Operating Modes Optimized raster, vector, and combined mode
Resolution(DPI) User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer Interface Ethernet and USB Connection
Compatible Operating Systems Windows XP/2000/Vista/7/8/10
Buffer Memory 128MB Standard
Display Panel 3.5″ LCD panel showing current file, total working time, laser power, speed etc.
Electrical Requirements 110 to 240 volts, 50 or 60 Hz, single phase
Ventilation System Integral exhaust fan.There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.
Standard Features Red dot pointer, Auto focus, Motorized table, Pass-through Door, Air Assist, Water pump ,Exhaust fan, HoneyComb Table, 2″ (50.8 mm) Focus Lens, Easily adjustable Home position, LCD Display,3D Engraving ,”No water” protection, Emergency stop, Maintenance mode, Open cover protection,Hybrid servo motor
Optional Features
High Resolution Head Increase the resolution up to 1000DPI
Rotary Axis Use to engrave on round items
Water Chiller Improve the cooling of laser tube

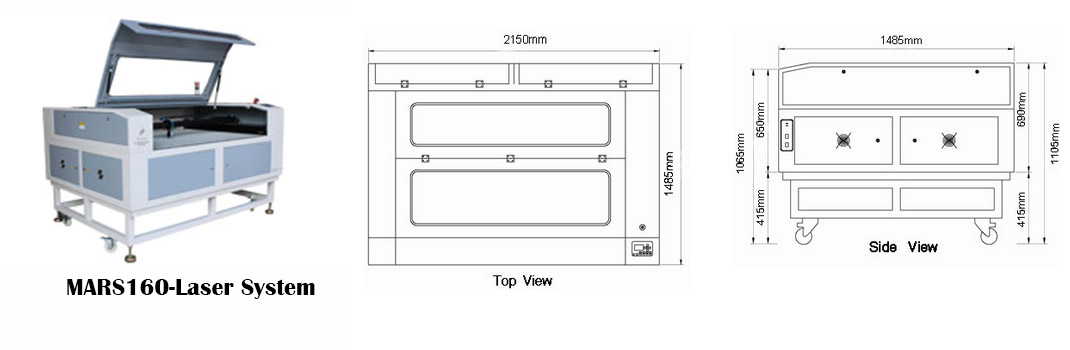

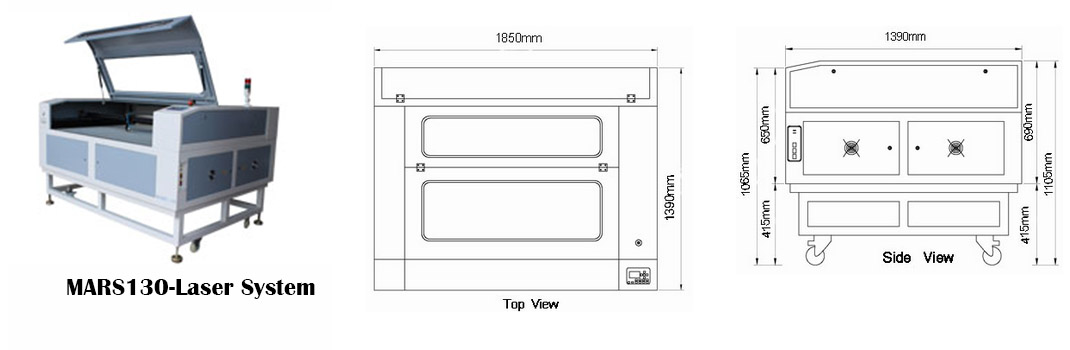

Machine Size

nova35 size
nova51 size
nova63 size

Optional Items

nova35
Water Chiller
When the laser tube is working, it will produce a large amount of heat.Since the water chiller has the refrigerating capacity and can adjust the temperature intelligently to keep the temperature within a certain range, there by to ensure the stability of laser working.
nova35
Rotary Axis
Rotary engraving equipment was used to extending THUNDERLASER system application, as a optional component, It can be used for cutting and engraving round items…
nova35
Heat Alarm Detector
A thermal detector is designed for areas where a fire will be more flame and heat than smoke; areas such as laser cutter and engraver, kitchens, garages and workshops. The small thermal heat detector will also have a 10 year, long life battery…
nova35
HR laser head
We named Hight-Resolution head as HR head for short,it’s made by special structure for focusing the laser bean into a much smaller dot,thus we can get more tiny laser dots in a unit area,and the engraving result will be more elaborate…
nova35
4″ laser head
4″ laser head owns a longer focal distance than 2″ standard head, thus for cutting thick material, it makes the cutting edge more smooth and straight…
nova35
Air compressor
The high pressure and low noise air compressor offered by Thunder Laser co2 laser engraving machine includes two parts: the high pressure and low noise air compressor and the water separator…

Materials

If your material is not in the below list, our Applications Team would be happy to assist you to test it.

Materials Engrave Cut
Wood √ √
Acrylic √ √
Delrin

√

√

Cloth

√

√

Leather √ √
Mat Board √ √
Melamine

√

√

Paper √ √
Mylar √ √
Pressboard √ √
Rubber √ √
Wood Veneer √ √
Fiberglass √ √
Plastic √ √
Cork √ √
Corian √ √
Twill √ √
Anodized Aluminum √ X
Painted Metals √ X
Tile √ X
Glass √ X
Coated Metals √ X
Ceramics √ X
Marble √ X
Stainless Steel * X
Brass * X
Titanium * X
Bare Metal * X

* means the laser cannot engrave directly, you will need the help of the “thermark spray”, you can visit www.thermark.com for more information.

Video

FAQ

1.Do I have to record all the cutting/engraving parameters for different materials in a paper?

No need. We’ve added a parameter library in the software, once you find out what settings is best for a certain material;you can record it in the parameter library. Next time you cut the same material, you just need to read it from the list.

2.Does your laser run from a laptop or Desktop PC?

Both ok, as long as your operating system is window 2000 or XP or vista or win 7.

3.Does your laser run in Windows XP?

Our laser runs on window 2000/ XP/ vista/ wins 7 both 32bits and 64bits system.But it does not run on Mac OS.

4.What software is suggested to design my jobs?

CorelDraw and AutoCAD are suggested. You can design all your artworks in these two software and then send to the RDWorks software to set the parameters easily.

5.What files is the software compatible with?

JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA,PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW

6.Will it engrave from a jpeg image?

Yes.

7.Can I take a picture and engrave the image on an object without any hassles?

Yes, you can take a photo by using a camera and then load the photo to the software directly and engrave it.

8.Does machine comes ready to work?

the laser machine is ready to work, the exhaust fan and the air pump and the water pump are included. (But when you using a big power laser tube, it is suggested to buy a water chiller for cooling the laser tube)

https://www.thunderlaserthai.com/how-to-use-your-laser-machine/how-to-setup-your-mini60-laser-system.html

https://www.thunderlaserthai.com/how-to-use-your-laser-machine/how-to-setup-your-nova-laser-cutter.html

9.How much time do I need to spend on learning how to run the laser machine?

As long as you know how to design jobs in graphic software, it just takes a few hours for you to become a master of laser machine. You just need to do some tests to know what speed and power is good for different materials. Since we’ve provided some of the parameter library, it will save you more time.You can watch the guiding videos from our website to learn how to use the machine in advance too.

https://www.thunderlaserthai.com/video/what-laser-cutter-can-create.html

https://www.thunderlaserthai.com/video/how-to-use-your-laser-machine.html

https://www.thunderlaserthai.com/video/how-to-use-your-laser-software.html

10.How to send a job to the machine?

Please watch this video directly to learn the detail

https://www.thunderlaserthai.com/video/how-to-use-your-laser-software.html

11.Do I need separate laser systems for engraving and cutting?

No, our laser machine can do both cutting and engraving very well.You just need one machine for both kinds of jobs.
